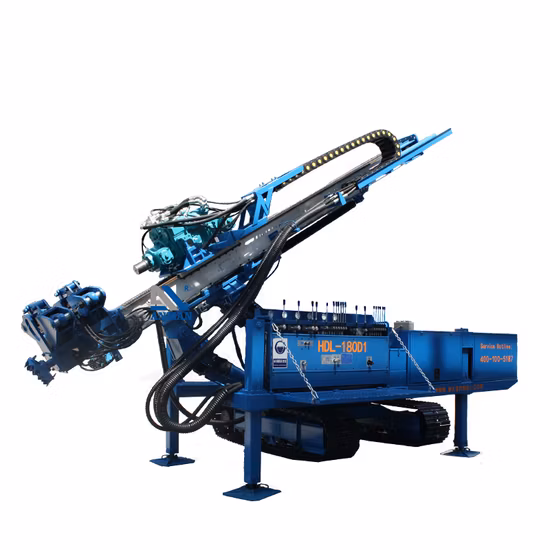

Hdl-180d1 Grouting Pilot Hole Borehole Drill Rig
Overview HDL-180D1 Top Drive Type Multifunctional Drilling Rig Product Description HDL-180D1 series drilling rig is top
Basic Info
| Model NO. | HDL-180D1 |
| Bit Type | Drill Bit |
| Drilling Way | Rotary |
| Type | Crawler |
| Weight | 9000kg |
| Output Speed of Rotary Head | 70r/Min |
| Output Torque of Rotary Head | 14000n.M |
| Input Power(Engine) | 55kw+55kw |
| Transport Package | Drilling Rig Naked, Accessories Carton Packaging |
| Specification | 6750*2100*2000 |
| Trademark | ANMAN |
| Origin | China |
| HS Code | 843041 |
| Production Capacity | 100sets/Mounth |
Product Description

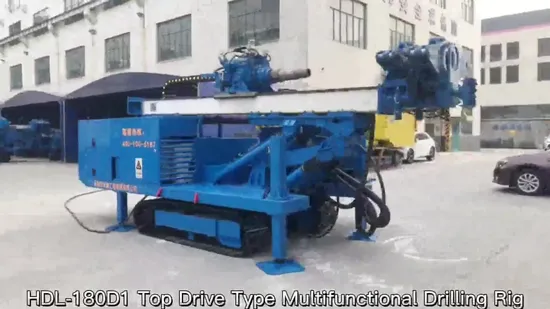

HDL-180D1 Top Drive Type Multifunctional Drilling Rig
Product Description
HDL-180D1 series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex formation according to market request.
Specification
| Model number | HDL-180D1 |
| Hole diameter(mm) | Φ100~Φ250 |
| Hole depth(m) | 150~180 |
| Rod diameter(mm) | Φ73,Φ89,Φ102,Φ114,Φ146,Φ168,Φ219 |
| Hole angle(°) | -12~90 |
| Output speed of rotary head(max)(r/min) | 70 |
| Output torque of rotary head(max)(N.m) | 14000 |
| Lifting speed of rotary head(m/min) | 0~5,30 |
| Feeding speed of rotary head(m/min) | 0~10,60 |
| Input power(Electromotor)(kW) | 55+55 |
| Dimension(L*W*H)(mm) | 6750*2100*2000 |
| Vertical Working Dimension (L*W*H)(mm) | 4800*2400*6750 |
| Weight(kg) | 9000 |
| Impact power of rotary head(max)(N.m) | 900 |
| Impact frequency of rotary head(max)(b/min) | 2100 |
| Rated lifting force (kN) | 90 |
| Rated feeding force (kN) | 45 |
| Feeding stroke(mm) | 4000 |
| Sliding stroke(mm) | 1500 |
| Climbing angle(°) | 20 |
| Working pressure(MPa) | 20 |
| Walking speed(m/h) | 3000/1500 |

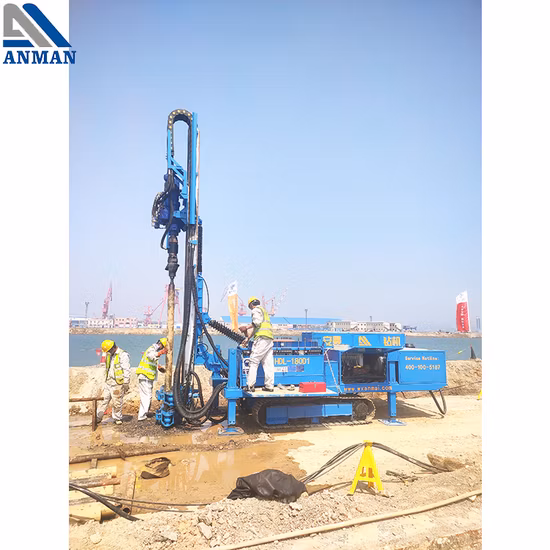

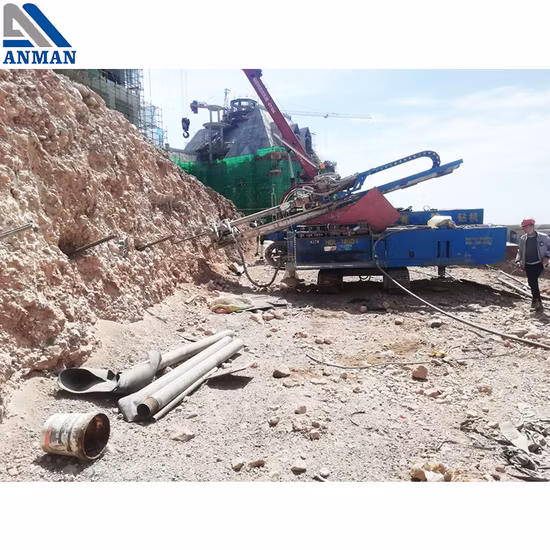

Application
